Using a new 3D printing process, four spin-offs of the EXIST research transfer "Additive Drives" at the TU Freiberg are increasing the performance and efficiency of current electric machines. The main focus is on the copper coil.
The idea: in future, the copper coils are to be transferred directly from the designers' development data to additive production, thus enabling significantly shorter development and test cycles.
"We are rethinking the electric motor," explains Philipp Arnold. "The drive tasks of the future - whether in industry or traffic - place high demands on the individual components. Classical manufacturing processes for electric motors quickly reach their limits here. Manufacturing the copper coils using 3D printing solves this problem. The operationally optimal geometry of the additive components enables a performance increase of up to 45 percent," says Arnold. The graduate industrial engineer is one of the four spin-offs. Together with Axel Helm, Dr. Jakob Jung and Lasse Berling (alumnus of the TU Freiberg), he wants to establish the additive production of copper coils, the main component of every electric motor, on the market within the next year and further develop the technology.
The turbo for the development process
The traditional production of prototypes for electric motors takes up to seven months. This is due to complex winding tools that have to be manufactured and set up. In contrast, the copper 3D printing process requires no additional tools and reduces the production time to a few days. This makes significantly faster test cycles and market-readiness processes possible. In cooperation with a manufacturing network, complete electric motors are thus produced in a short time.
No reduction in material parameters
The selective laser melting production process used for this purpose is optimized for the application, as is the copper raw material. "We achieve an electrical conductivity of 100% according to the International Annealed Copper Standard (IACS)", explains co-founder Axel Helm. As a specialist in additive manufacturing, he has brought the 3D printing process to maturity through years of research work. Laser melting also guarantees an extremely strong cohesion of the components. All material properties, from thermal conductivity to clamping force, are therefore in no way inferior to classic metal components made of cast steel, aluminum or copper.
The spin-off is supported by an EXIST research transfer at the Chair of Additive Manufacturing of Prof. Dr. Henning Zeidler of the TU Bergakademie Freiberg. "With the EXIST Research Transfer, the BMWi and TU Bergakademie Freiberg have created an essential basis for these high-potential spin-offs to develop their products to market maturity and establish themselves in a rapidly growing market," explains Andre Uhlmann from the SAXEED start-up network at TU Bergakademie Freiberg, which has been supporting the Additive Drives team in the first funding phase since March.

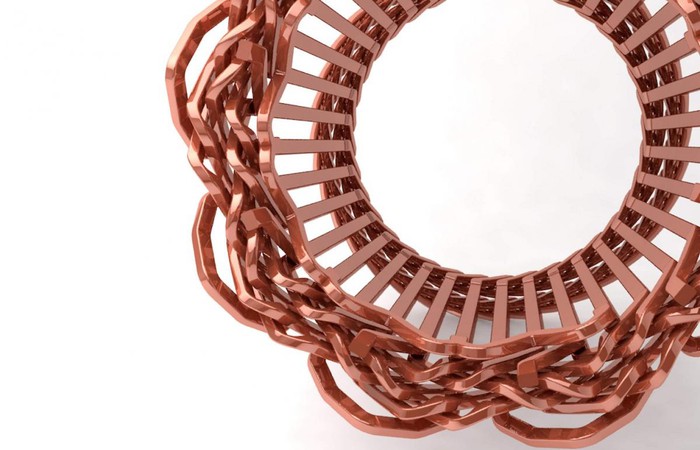

(The technology: additively manufactured Hairpin traction motor. Photo: Additive Drives)
Further information under: www.additive-drives.de
